Product Details:
|
| Type: | Run Flat Tire Insert | Warranty: | 3 Months |
|---|---|---|---|
| Application1: | FOR JAC | Application2: | FOR JMC |
| Application3: | FOR FAW | Application4: | FOR FOTON |
| Application5: | FOR SINOTRUK | Application6: | FOR IVECO |
| Application7: | FOR VOLVO | Application8: | FOR SCANIA |
| Application9: | FOR HINO | Application10: | FOR ISUZU |
| Port: | Qingdao Or Choose According To Customer Needs | ||
| Highlight: | High Polymer run flat wheel inserts,High Polymer Run Flat Tyre System,Commercial Vehicle Run Flat Tyre System |
||

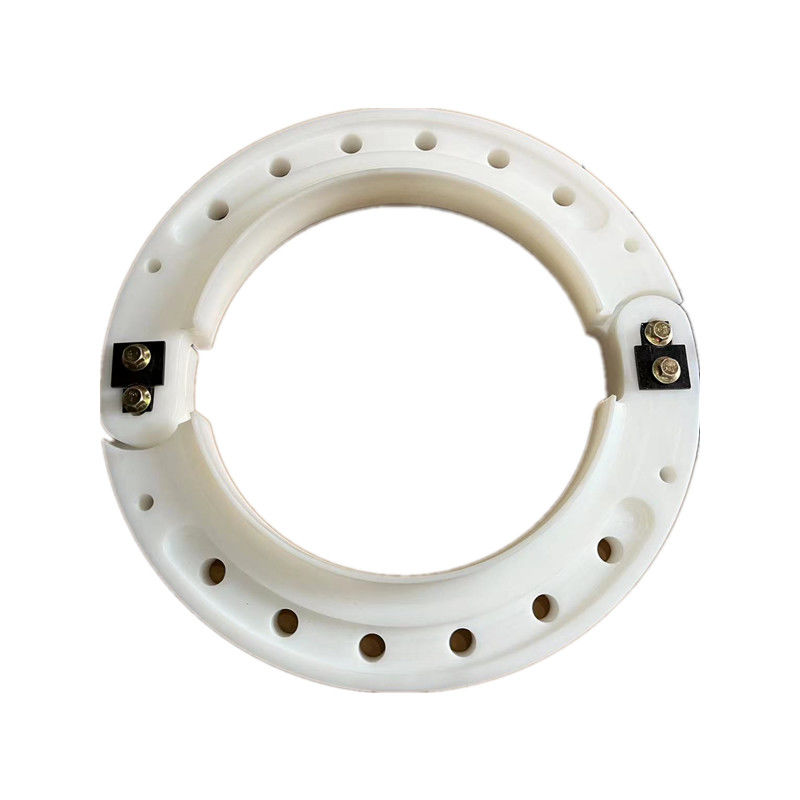

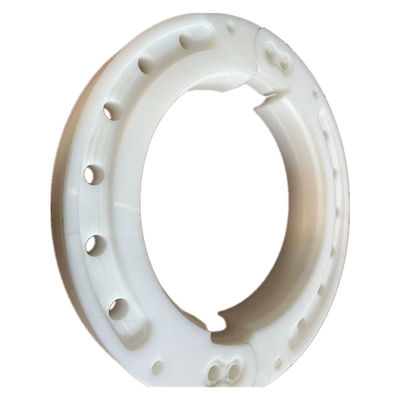

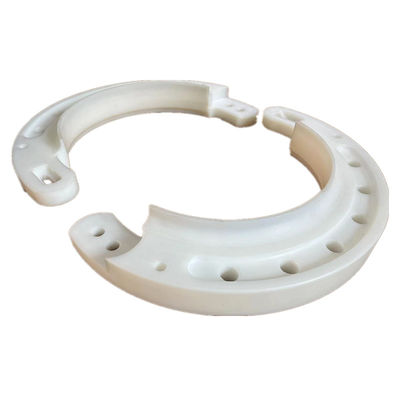

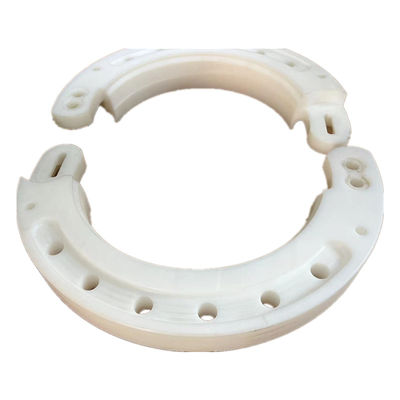

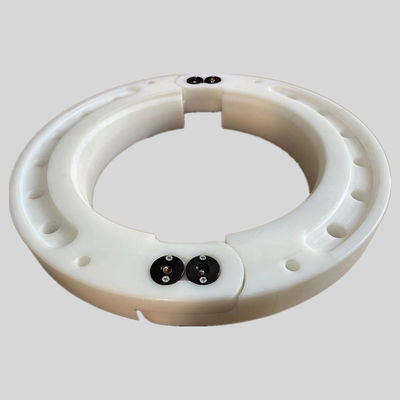

Run Flat Insert Tire System High Polymer Run Flat Insert
|
Item
|
Our Products
|
Other Common Products
|
Our Products Advantages
|
Problems that other products have never solved
|
|
Production Technology
|
Injection Molding + Stamping (Adopt patented technology)
|
Stamping
|
Common size 24H delivery Custom Production cycle 7 days
|
Long production time Delivery times are unstable Influence the purchasing intention of customers
|
|
Material
|
SUS304+PA66GF15
|
A3/S50C
|
ROSH Environmental Certification /UL Certification
|
/
|
|
Surface Treatment
|
Mold integral forging, save extra process
|
Spray Paint
|
Standardized production line, Improve efficiency and environmental protection
|
High energy consumption, low efficiency, not environmental protection
|
|
Product Weight
|
3.6~6KG
|
4.6~9KG
|
Weight loss by 22% ~ 34% Avoid influence on tire parameters and structure
|
Increase hub dynamic balance difference Need constant debugging
|
|
Contact Area With Hub Bottom
|
98%
|
30%
|
Adopt full fit patent technology
|
Use point contact
|
|
Number of Product Reuses After Flat Tire
|
3~5 Times
|
1~2 Times
|
No damage or deformation after tire flat
|
Surface wear/extrusion deformation after flat tire
|
|
Product Fastening Function
|
Add strength spring
|
/
|
Product fastening function patent technology
|
/
|
|
Product Bolts and Nuts
|
Nut in groove/bolt fixed to profiled gasket groove(Patent Technology)
|
Nut in groove
|
Nuts and bolts do not rotate
|
Bolts are easy to turn and affect the tightness of products
|
|
Product Appearance
|
Customizable LOGO
|
/
|
LOGO can be engraved in any position of the product
|
/
|
|
High Temperature Test
|
220℃
|
150℃
|
|
|
|
Cold Test
|
-50℃
|
-40℃
|
||
|
Salt Spray Test
|
168 TH
|
158 TH
|
||
|
Electronic Surveillance
|
The mechanical switch is connected with the pneumatic switch (Patent technology)
|
Mechanical switch
|
Real-time monitoring of tire pressure, when the tire pressure reaches the specified value, display installation.
|
Mechanical switch
|
|
Product Specification
|
Multi - piece type, any matching
|
/
|
Replace adjusting piece, Strong commonality
|
Different wheels and different models need to be customized,
|
|
Product Disassembling
|
Pneumatic tools. Multipoint support (Patent technology)
|
/
|
The installation takes 15 minutes at most
|
Need to turn the tire debugging, the product is easy to deformation
|
